Huawei Cloud Engine 16 Port Gigabit Switch with 44 GE SFP Ports and 4 10GE SFP+ Ports

MOQ:	1 pieces
Price:	Contact us
Standard Packaging:	Original packaging box+Based on customer needs
Delivery Period:	2-7 working days
In Stock
Express, AIR, LCL, AIR, FCL, Express
S5732-H48S6Q
Payment Method:	L/C,D/A,D/P,T/T,Western Union
Supply Capacity:	/pieces >=1 pieces

Details Information

Product Description

Detail Information

Place of Origin

Beijing, China

Type:

Network Switch

Ports:

44*GE SFP Ports,4*10GE SFP+ Ports,6*40GE QSFP Ports,

Switching Capacity:

2.4 Tbps/24 Tbps

Forwarding Performance:

486/558 MPPS

Dimensions (H X W X D):

442 Mm X 420 Mm X 43.6 Mm

Chassis Height:

1 U

Highlight:

558MPPS 16 port gigabit switch

Huawei 16 port gigabit switch

S5732-H48S6Q

Product Description

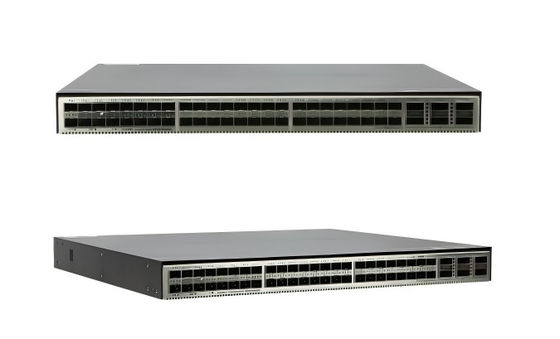

Huawei Cloud Engine 16 Port Gigabit Switch S5732-H48S6Q

S5732-H48S6Q Overview

The Huawei S5732-H48S6Q switch features 44 1000BASE-X ports, 4 10GE SFP+ optical ports, and 6 40GE/100GE QSFP+ optical ports. As part of Huawei's Cloud Engine S5732-H series, these next-generation enhanced all-optical Ethernet switches are built on Huawei's unified Versatile Routing Platform (VRP) and incorporate various Intelligent Driving Network (IDN) features.

S5732-H48S6Q Quick Spec

44 1000BASE-X ports
4 10GE SFP+ optical ports
6 40GE/100GE QSFP+ optical ports
Forwarding performance: 486/558 MPPS
Switching capacity: 2.4 Tbps/24 Tbps

S5732-H48S6Q Appearance and Structure

Component	Description
1	Forty-eight 1000BASE-X ports (eSFP-GE-SX-MM850, eSFP-GE-ZX100-SM1550, LE2MGSC40DE0, LE2MGSC40ED0)
2	Four 10GE SFP+ ports (OMXD30000, OSX010000, OSX040N01, SFP-10G-ZR, SFP-10G-USR)
3	Six 40GE/100GE QSFP+ optical ports (QSFP-40G-eSR4, QSFP-40G-iSR4, QSFP-40G-eSDLC-PAM, QSFP-40G-LR4, QSFP-40G-SDLC-PAM)
4	Ground screw
5	SSD card slot
6	One ETH management port
7	One USB port
9	One PNP button
10-13	Fan module slots 1-4
14-15	Power module slots 1-2

Technical Specifications

Fixed ports: 44 x GE SFP ports, 4 x 10GE SFP+ ports, 6 x 40GE QSFP+ ports

Dimensions: 442 mm x 420 mm x 43.6 mm

Chassis height: 1 U

Weight: 9.2 kg (including packaging)

Power supply: 600 W AC (pluggable) or 1000 W DC (pluggable)

Voltage range:

AC input (600 W AC): 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-voltage DC input (600 W AC): 190 V DC to 290 V DC
DC input (1000 W DC): -36 V DC to -72V DC

Power consumption: 255 W (maximum)

Noise level:

Normal temperature: 65dB (A) sound power, 52dB (A) sound pressure
High temperature: 88dB (A) sound power

Operating temperature:

0-1800 m altitude: -5°C to +45°C
1800-5000 m altitude: Reduces by 1°C per 220 m altitude increase

Storage temperature: -40°C to +70°C

Humidity: 5% to 95% (non-condensing)

Surge protection:

AC power port: ±6 kV differential mode, ±6 kV common mode
DC power port: ±2 kV differential mode, ±4 kV common mode

Cooling: Air cooling with intelligent speed adjustment and pluggable fans

Key Features

Enhanced network agility for services
Comprehensive VPN technologies
Flexible Ethernet networking
Multiple security control methods
Advanced IPv6 features
Intelligent Stack (iStack) capability
VXLAN support
Big data security collaboration
Intelligent O&M and upgrade
Open Programmability System (OPS)

Recommended Modules

Model	Description
PAC600S12-CB	600W AC Power Module (Back to Front, Power panel side exhaust)
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)
S-SFP-GE-LH80-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC)
SFP-GE-ZBXU1	Optical Transceiver, eSFP, GE, BiDi Single-mode Module (1490nm(Tx)/1570nm(Rx), 80km, LC)
SFP-GE-LX-SM1490-BIDI	Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC)
eSFP-GE-ZX100-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC)
SFP-GE-ZBXD1	Optical Transceiver, eSFP, GE, BIDI Single-mode Module (1570nm(Tx)/1490nm(Rx), 80km, LC)
LE2MGSC40DE0	Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 40km, LC)
LE2MGSC40ED0	Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 40km, LC)
SFP-GE-LX-SM1310-BIDI	Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC)
SFP-GE-BXU1-SC	1000Base, BIDI Optical Transceiver, SFP, GE, Single-mode Module (TX1490nm/RX1310nm, 10km, SC)

Comparison with Similar Models

Specification	S5732-H24S6Q	S5732-H48S6Q
Fixed ports	20 x GE SFP ports, 4 x 10GE SFP+ ports, 6 x 40GE QSFP+ ports	44 x GE SFP ports, 4 x 10GE SFP+ ports, 6 x 40GE QSFP+ ports
Dimensions	442 mm x 420 mm x 43.6 mm	442 mm x 420 mm x 43.6 mm
Chassis height	1 U	1 U
Weight	8.9 kg	9.2 kg
Power supply	600 W AC (pluggable), 1000 W DC (pluggable)	600 W AC (pluggable), 1000 W DC (pluggable)
Power consumption	229 W	255 W
Surge protection	AC: ±6 kV differential, ±6 kV common DC: ±2 kV differential, ±4 kV common	AC: ±6 kV differential, ±6 kV common DC: ±2 kV differential, ±4 kV common
