Smart Home Lan Poe Network Switch S5735-L8T4S-A1
  • name
  • name
  • name
  • name

Smart Home Lan Poe Network Switch S5735-L8T4S-A1

MOQ: 1 pieces
Price: Contact us
Standard Packaging: Original packaging box+Based on customer needs
Delivery Period: 2-7 working days
In Stock
LCL, AIR, FCL, Express
Supply Smart Home Lan Poe S5735-L8T4S-A1 Network Switch Maximum Power Consumption 29.7 W 2.08 kg
Payment Method: L/C,D/A,D/P,T/T,Western Union
Supply Capacity: /pieces >=1 pieces
Details Information
Product Description
Detail Information
Place of Origin
Beijing, China
Ports:
8 X 10/100/1,000 Base-T Ethernet Ports, 4 X Gig SFP
Transmission Rate:
27/102Mpps
Switch Capacity:
336Gbps/3.36Tb Ps
Product Name:
Network Switch
Color:
Black
Chassis Height:
1U
Chassis Size:
90.0 Mm X 370.0 Mm X 380.0 Mm
Weight:
2.08 Kg
Highlight:

Home Lan poe network switch

,

poe network switch

,

s5735 l8t4s a1

Product Description
Huawei S5735-L8T4S-A1 Switch Overview



Huawei S5735-L8T4S-A1 switch with 8 10/100/1000BASE-T ports, 4 GE SFP ports, AC power fixed, which is one model of Huawei S5735-L series switch.

CloudEngine S5735-L series switches are ideal for scenarios such as enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-L switches stand out with compelling features such as intelligent stack (iStack), flexible Ethernet networking, and diversified security control. They support multiple Layer 3 routing protocols and provide high-performance and service processing capabilities.





Huawei S5735-L8T4S-A1 Switch Quick Specs



8 10/100/1000Base-T ports

4 GE SFP ports

AC power supply

Forwarding performance: 18 Mpps

Switching capacity: 24 Gbps/336 Gbps

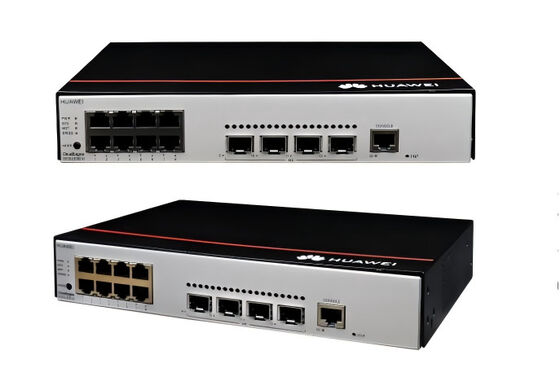

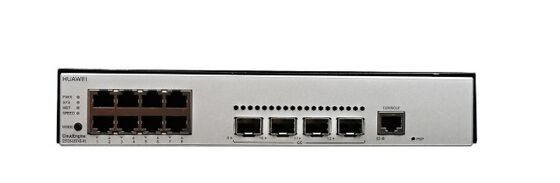

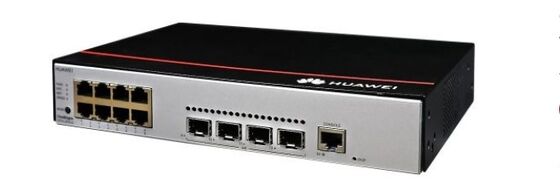

Huawei S5735-L8T4S-A1 Switch Appearance and Structure

Smart Home Lan Poe Network Switch S5735-L8T4S-A1 0

Item Specification
Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.84 in. x 7.1 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250.0 mm x 187.0 mm (1.72 in. x 9.84 in. x 7.36 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 370.0 mm x 380.0 mm (3.54 in. x 14.57 in. x 14.96 in.)
Chassis height [U] 1 U
Chassis material Metal
Weight without packaging [kg(lb)] 1.38 kg (3.04 lb)
Weight with packaging [kg(lb)] 2.02 kg (4.45 lb)
Typical power consumption [W] 21.2 W
Typical heat dissipation [BTU/hour] 72.34 BTU/hour
Maximum power consumption [W] 26.3 W
Maximum heat dissipation [BTU/hour] 89.74 BTU/hour
Static power consumption [W] 14.8 W
MTBF [years] 71.82 years
MTTR [hours] 2 hours
Availability > 0.99999
Noise at normal temperature (acoustic power) [dB(A)] 43 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 31.5 dB(A)



Product Features

  • ● High-density Ethernet switching capabilities, facilitating efficient network traffic management
  • ● Flexible deployment options that support both three-tiered and simplified networks
  • ● Comprehensive security features including hardware-based IPv6 and MPLS capabilities
  • ● Energy-saving design that reduces overall operational costs
  • ● Easy operation and maintenance with an intelligent management system

Product Applications

Given its advanced features and specifications, the Huawei S5735-L8T4S-A1 is perfectly suited for the following application scenarios:

● Building reliable, high-capacity campus networks and data center access networks.
● Deploying as an access or aggregation switch in enterprise LAN architectures.
● Serving media and entertainment industries where high data throughput and availability are crucial.
