Maximize application performance and density
The scalable business architecture of the R640 is designed to maximize application performance and provide the flexibility
to optimize configurations based on the application and use case. With the R640 you can create an NVMe cache pool and
use either 2.5” or 3.5” drives for data storage. Combined with up to 24 DIMM’s, 12 of which can be PMems or NVDIMMs,
you have the resources to maximize application performance with the optimum configuration in only a 1U chassis.
• Simplify deployments and speed deployments with Dell EMC ready nodes for VSAN.
• Maximize storage performance with up to 10 NVMe drives or 12 2.5” drives.
• Scale compute resources with 2nd Generation Intel® Xeon® Scalable processors and tailor performance.
Automate maintenance with Dell EMC OpenManage
The Dell EMC OpenManage™ portfolio helps deliver peak efficiency for PowerEdge servers, delivering intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities, the R640 is simply managed, freeing up time for high profile projects.
• Simplify management with the OpenManage Enterprise™ console, with customized reporting and automatic discovery.
• Take advantage of QuickSync 2 capabilities and gain access to your servers easily through your phone or tablet
Guard your data center with built in security
Every PowerEdge server is designed as part of a cyber resilient architecture, integrating security into the full server life
cycle. The R640 leverages new security features built-into every new PowerEdge server strengthening protection so you
can reliably and securely deliver accurate data to your customers no matter where they are. By considering each aspect
of system security, from design to retirement, Dell EMC ensures trust and delivers a worry-free, secure infrastructure
without compromise.
• Rely on a secure component supply chain to ensure protection from factory
to the data center.
• Maintain data safety with cryptographically signed firmware packages
and Secure Boot.
• Protect your server from malicious malware with iDRAC9 Server Lockdown
mode (requires Enterprise or Datacenter license).
• Wipe all data from storage media including hard drives, SSDs.
| R640 |
Technical Specification |
| Processor |
Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor |
| Memory |
24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933 MT/s, 3TB max
Up to 12 NVDIMM, 192 GB Max
Up to 12 Intel® Optane™ persistent memory PMem, 6.14TB max, (7.68TB max with PMem + LRDIMM)
Supports registered ECC DDR4 DIMMs only
|
|
Storage controllers
Internal boot
|
Internal Controllers: PERC H330, HBA330, HBA350i (adapter only), H730P, H740P, H750 (adapter only)
External Controllers: H840, 12 Gbps SAS HBA, HBA355e (adapter only, non-RAID)
Software RAID: S140
Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240 GB, 480 GB
Internal Dual SD Module1
|
| Drive bays |
Front drive bays: Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to 8 NVMe SSD max 76.8TB or up to 10 NVMe drives max 64TB,
or up to 4 x 3.5” SAS/SATA HDD max 64TB
Rear drive bays: Up to 2 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 15.36TB
Optional DVD-ROM, DVD+RW
|
| Power Supplies |
495W Platinum
750W Platinum
750W 240HVDC Platinum*
1100W 48VDC
1100W Platinum
1100W 380HVDC Platinum*
|
1600W Platinum
750W Titanium
Hot plug power supplies with full redundancy option
Up to 8 hot plugs fans with full redundancy
*Available in China and Japan only
|
| Dimensions |
Form factor: Rack (1U) |
Height: 42.8mm (1.69”) Width*: 482.0mm (18.98”) Depth*: 808.5mm (31.8”) Weight: 21.9kg (48.3 lbs.) *Dimensions include bezel |
| Embedded Management |
iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, Quick Sync 2 wireless module (optional)
|
| I/O & Ports |
Network Options: 4 x 1GbE
2 x 10GbE + 2 x 1GbE
4 x 10GbE
2 x 25GbE
Front Ports: 1 x Dedicated iDRAC direct USB
1 x USB 2.0
1 x USB 3.0 (optional)
1 x Video
|
Rear Ports: 1 x Dedicated iDRAC network port
1 x Serial
2 x USB 3.0
1 x Video
PCIe: 3 x Gen3 slots all x16
Video Card: 2 x VGA
|
Product overview
The PowerEdge R640 is a general purpose platform expandable up to 7.68TB of memory, up to twelve 2.5 inch drives, and
flexible I/O options. The R640 can handle demanding workloads such as virtualization, dense private cloud, High Performance
Computing (HPC) and software-defined storage.

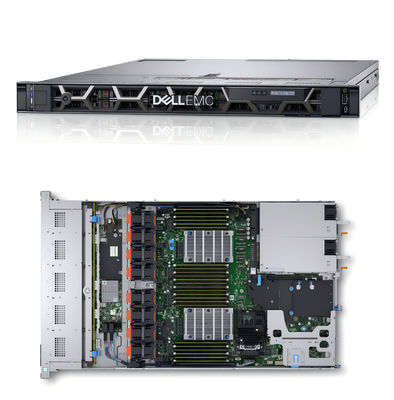

The Dell EMC PowerEdge R640 is the ideal dual-socket, 1U platform for dense scale-out data center computing. The R640
combines density, performance and scalability to optimize application performance and data center density.
The PowerEdge R640 features:
● 2nd Generation Intel® Xeon® Scalable Processor product family (with up to 28 cores and two threads per core)
● Up to six DDR4 memory channels with two DIMMs per channel per CPU and 24 DIMMs (supports DDR4 RDIMM/LRDIMM/
NVDIMM-N/DCPMM)
● PCI Express® (PCIe) 3.0 enabled expansion slots (with up to 48 lanes per CPU)
● Networking technologies, such as Ethernet, Infiniband, OCP, OPA
Chassis views
Front view and features
The images below illustrates the front view of the PowerEdge R640 with the types of supported chassis options:
Figure 1. Front view 4 x 3.5-inch drive chassis
Figure 2. Front view 8 x 2.5-inch drive chassis
Figure 3. Front view 10 x 2.5-inch drive chassis
Back view of the system
Depending on your system configuration, the drive backplanes supported in PowerEdge R640 are listed here:
● 2.5 inch (x8) SAS, SATA, or NVMe backplane
● 2.5 inch (x10) SAS, SATA, or NVMe backplane
● 2.5 inch (x10) SAS, SATA, or NVMe backplane and 2.5 inch (x2) SAS or SATA backplane (back)
● 3.5 inch (x4) SAS or SATA backplane
Figure 4. Back panel view of 2 x 2.5 inch hard drives with 1 PCIe expansion slot
Figure 5. Back panel view of system with 3 PCIe expansion slots
Figure 6. Back panel view of system with 2 PCIe expansion slots
Internal view of the system
The chassis design of the PowerEdge R640 is optimized for easy access to components and for efficient cooling. The PowerEdge R640 supports up to 24 DIMMs, two processors, hot-plug redundant fans, system board and hard drive bays, and many other components and features. For more system views, see the Dell EMC PowerEdge R640 Installation and Service Manual at Dell.com/Support/Manuals
Figure 7. Inside the system with 1 PCIe expansion riser
Figure 8. Inside the system with 2 PCIe expansion risers
Figure 9. Inside the system with 3 PCIe expansion risers
