PowerEdge R450
The Dell EMC PowerEdge R450, with 3rd generation Intel® Xeon® Scalable processors, offers exceptional value and density with excellent performance.
Innovate at scale with challenging and emerging workloads
The Dell EMC PowerEdge R450 is a 1U, two-socket entry-level server that offers the best value for organizations
seeking updated processing, I/O, and storage capabilities in a dense form factor. It lets you:
• Add additional power: Adds additional power with up to two 3rd generation Intel Xeon Scalable processors with up
to 24 cores per socket
• Built with faster memory: Supports up to 16 DDR4 RDIMMS at 2933 MT/sec
• Improve throughput, reduce latency with up to 2 PCIe Gen4 slots
• Include flexible local storage: Offers up to 8x 2.5-inches HDDs or SSDs; or up to 4x 3.5-inches HDDs or SSDs
• Support distinctive needs: Perfect for smaller infrastructures and light virtualization demands.
Increase efficiency and accelerate operations with autonomous compute infrastructure
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT
infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience
by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage
portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and
protect your technology environment.
• Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and
control for better server management
• Intelligent automation lets you enable cooperation between human actions and system capabilities for added
productivity
• Integrated change management capabilities for update planning and seamless, zero-touch configuration and
implementation
• Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools.
| R450 |
Technical Specification |
| Processor |
Up to two 3rd Generation Intel Xeon Scalable processors with up to 24 cores per processor |
| Memory |
|
|
Storage Drives
|
Up to 4 x 3.5-inch SAS/SATA (HDD/
SSD) max 64 TB
Up to 8 x 2.5-inch SAS/SATA (HDD/
SSD) max 61.44 TB
|
| Storage Controllers |
Internal controllers: PERC H355, PERC
H345, PERC H745, PERC H755,
HBA355i, S150
Internal Boot: Internal Dual SD Module
or Boot Optimized Storage Subsystem
(BOSS-S1): HWRAID 2 x M.2 SSDs or
USB
External PERC (RAID): PERC H840,
HBA355e
|
| PCIe Slots |
|
| Embedded NIC (LOM) |
2 x 1GbE |
| Networking options (OCP 3.0) |
|
| I/O Ports |
Front ports:
● 1 x iDRAC Direct (Micro-AB USB)
port
● 1 x USB 2.0
● 1x VGA
Rear ports:
● 1 x USB 2.0
● 1 x Serial (optional)
● 1 x USB 3.0
● 2 x Ethernet
● 1 x VGA
● 1 x Dedicated iDRAC network port
Internal Port: 1 x USB 3.0 (optional)
|
System overview
The Dell™ PowerEdge™ R450 is Dell's latest 2-socket, 1 U rack servers designed to run complex workloads using highly scalable memory, I/O, and network options. The systems feature 3rd Generation Intel® Xeon® Processor Scalable Family , up to 16 DIMMs, PCI Express® (PCIe) 4.0 enabled expansion slots, and a choice of network interface technologies to cover NIC. The R450 is a general-purpose platform capable of handling demanding workloads and applications, such as data warehouses, ecommerce, databases, and high-performance computing (HPC).
Chassis views

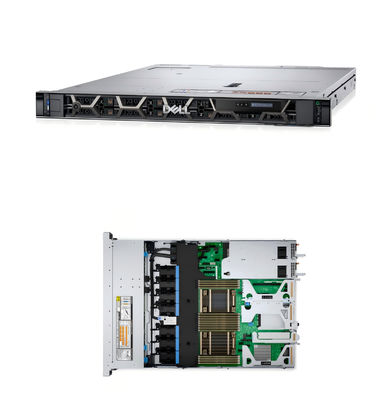

Front view of the system
Figure 1. Front view of 4 x 3.5-inch drive system
Figure 2. Front view of 8 x 2.5-inch drive system
Rear view of the system
Figure 3. Rear view of the system
Inside the system
Figure 4. Inside the system
1. Fan 2. Cable retention latch
3. Intrusion switch 4. Power interposer board
5. Memory module slots 6. Riser 2c
7. PSU 1 and PSU 2 8. BOSS riser
9. OCP 10. Riser 1
11. Heat sink 12. System board
13. Air shroud 14. Drive backplane
15. Backplane cover 16. Information tag
