Dell PowerEdge R940 4-Socket 3U Rack Server with 48 DDR4 DIMM Slots

MOQ:	1 piece
Price:	Contact us
Standard Packaging:	Original packaging box+Based on customer needs
Delivery Period:	2-7 working days
In stock
Express, AIR
PowerEdge R650
Payment Method:	L/C,D/A,D/P,T/T,Western Union
Supply Capacity:	/pieces >=2 pieces

Details Information

Product Description

Detail Information

Place of Origin

Beijing China

Brand Name

Dell Poweredge

Model Number

Memory:

48 DDR4 DIMM Slots

Processor:

Up To Four 2nd Generation Intel® Xeon® Scalable Processors, Up To 28 Cores Each

Power Supply:

Platinum 1100W, 1100W 380VDC, 1600W, 2000W, 2400W Gold 1100W-48VDC

Bezel:

Optional LCD Or Security Bezel

Server Type:

3U Rack Server

Warranty:

3 Years

Highlight:

Dell PowerEdge R940 rack server

4-socket 3U server with DDR4

Dell PowerEdge server 48 DIMM slots

Product Description

PowerEdge R940

The PowerEdge R940 is designed to power your mission critical applications and real-time decisions. With four sockets and up to 12 NMVe drives, the R940 provides scalable performance in just 3U.

Dell PowerEdge R940 4-Socket 3U Rack Server with 48 DDR4 DIMM Slots 0

Breathtaking performance for mission-critical workloads

The scalable business architecture of the EMC PowerEdge R940 can deliver the most mission critical workloads.
With automatic workload tuning for many workloads, configuration is quick. Combined with up to 15.36TB of memory and
13 PCIe Gen 3 slots, the R940 has all the resources to maximize application performance and scale for future demands.
• Maximize storage performance with up to 12 NVMe drives and ensure application performance scales easily.
• Optimized for software defined storage with a special 2-socket configuration delivering 50% more UPI bandwidth
compared to a regular 2-socket server.
• Free up storage space using internal M.2 SSDs optimized for boot.
• Eliminate bottlenecks with up to 15.36TB of memory in 48 DIMMS, 24 of which can be Intel® Optane™ DC persistent
memory DCPMMs.

Automate maintenance with EMC OpenManage

The EMC OpenManage™ portfolio helps deliver peak efficiency for PowerEdge servers, delivering intelligent,automated management of routine tasks. Combined with unique agent-free management capabilities,the PowerEdge R940 is simply managed, freeing up time for high profile projects.
• Simplify management with the OpenManage Enterprise™ console, with customized reporting and automatic discovery.
• Take advantage of QuickSync 2 capabilities and gain access to your servers easily through your phone or tablet.

R940	Technical Specification
Processor	Up to four 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores each
Memory	48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, up to 2933MT/s, 6TB max Up to 12 NVDIMM, 384GB Max Up to 24 Intel® Optane™ DC persistent memory DCPMM, max 12.28TB, (15.36TB max with DCPMM and LDRIMM) Supports registered ECC DDR4 DIMMs only
Storage controllers Internal boot	Internal Controllers: PERC H330, H730P, H740P, HBA330 External Controllers: H840, 12 Gbps SAS HBA Software RAID:S140 Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB Internal Dual SD Module
Drive bays	Front drive bays: Up to 24 x 2.5” SAS/SATA (HDD/SSD) with up to 12 NVMe PCIe SSD, max 184.32TB
Power Supplies	Platinum 1100W, 1100W 380VDC, 1600W, 2000W, 2400W Gold 1100W-48VDC	Hot plug power supplies with full redundancy option 8 hot plugs fans with full redundancy
Dimensions	Form factor: Rack (3U) Height: 130.3mm (5.13”) Width: 434mm (17.08”) Depth: 784.2mm (30.8”) Weight: 49.9kg (110lbs.) *Dimensions do not include bezel
Embedded Management	IPMI 2.0 compliant iDRAC9, iDRAC Direct, iDRAC RESTful with Redfish Quick Sync 2 wireless module (optional)
I/O & Ports	Network daughter card options 4x 1GbE, 4x 10GbE, 2x 10GbE+2x 1GbE, or 2x 25GbE Front ports: 1 x Dedicated iDRAC Direct USB, 2 x USB 3.0, 1 x VGA Rear ports: 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x VGA Video card: 2 x VGA Up to 13 x Gen3 slots, (3 x8 + 10 x16)

System overview

The EMC PowerEdge R940 is a 4-socket, 3U monolithic rack server designed to run complex workloads using highly scalable memory, I/O, and network options. The system features the 2nd Generation Intel® Xeon® Processor Scalable family,with up to 48 DDR4 DIMMs, up to 13 PCI Express (PCIe) 3.0 enabled expansion slots, and a choice of embedded NIC technologies.

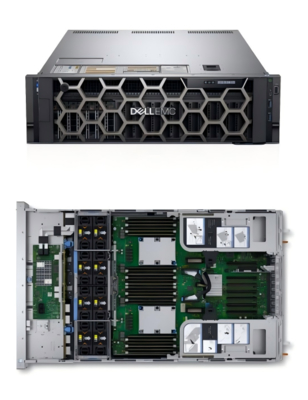

Chassis views

Front view of the system

Dell PowerEdge R940 4-Socket 3U Rack Server with 48 DDR4 DIMM Slots 1

Figure 1. PowerEdge R940 front panel
1. Left control panel
2. System health and system identifier
3. iDRAC Quick Sync 2 wireless indicator
4. Hard drives
5. USB management port
6. Power button
7. Video connector
8. USB management port/iDRAC Direct
9. Information tag

Dell PowerEdge R940 4-Socket 3U Rack Server with 48 DDR4 DIMM Slots 2

Figure 2. PowerEdge R940 back view
1. Full-height PCIe expansion card slot
2. Full-height PCIe expansion slots
3. Ethernet connector (4)
4. Full-height PCIe expansion card slot
5. Power supply unit (2)
6. Video port
7. Serial port
8. iDRAC9 Enterprise port
9. USB port
10. System identification button
11. Status indicator cable port
