HPE ProLiant DL360 Gen10 1U Rack Server with Intel Xeon Scalable

Products

Network Router

Mr. YUCHUANGQIJI

admin@yuchuangqiji.com

+86-139-3001-9179

18398702737 * 13718957698

Contact Now

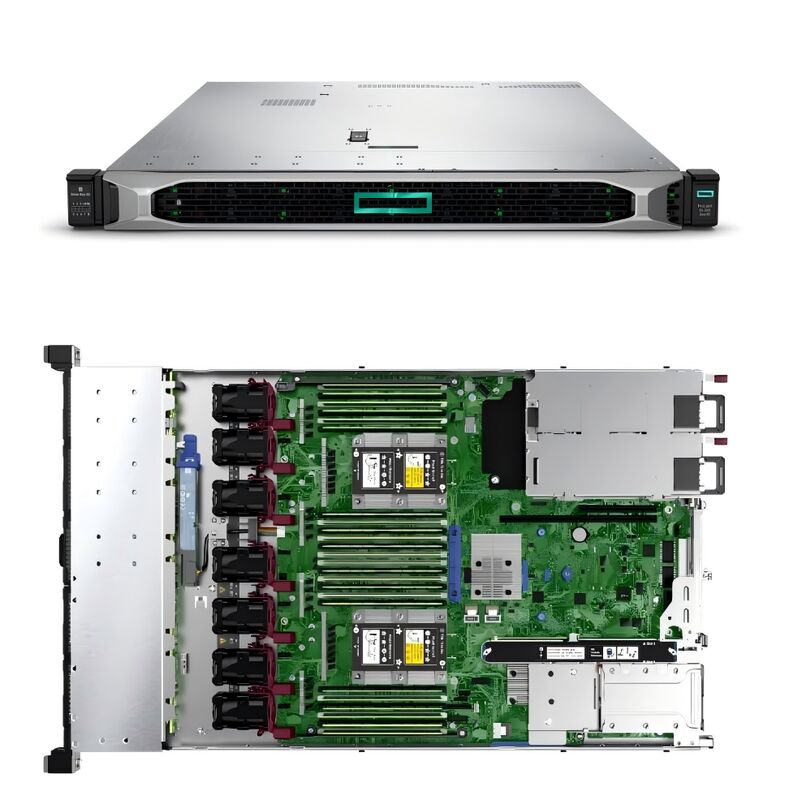

HPE ProLiant DL360 Gen10 1U Rack Server with Intel Xeon Scalable

MOQ:	1 piece
Price:	$1
In Stock
Express, AIR
Dell Server R740xd
Payment Method:	L/C,D/A,D/P,T/T,Western Union

Details Information

Product Description

Detail Information

Type:

1 U Rack Server

Processor:

Intel® Xeon® Scalable

Memory Slots:

24 DIMM Slots

NVDIMM Rank:

Single Rank

NVDIMM Capacity:

16 GB

Weight:

25kg

Highlight:

HPE ProLiant DL360 Gen10 server

1U rack server with Xeon

HPE server with Intel Scalable

Product Description

HPE ProLiant DL360 Gen10 server

The HPE ProLiant DL360 Gen10 Server supports the Inte Xeon Scalable Processor Family with up to 28 cores, plus 2933 MT/s HPE DDR4 Smart Memory supporting up to 3.0 TB max. With the added performance that HPE Persistent Memory and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy this dense platform for diverse workloads in space constrained environments and maintain it with ease by automating the most essential server lifecycle management tasks with HPE OneView and HPE iLO 5.

HPE ProLiant DL360 Gen10 1U Rack Server with Intel Xeon Scalable 0

Industry-leading Performance with Versatile Compute

HPE ProLiant DL360 Gen10 server supports industry-standard technology leveraging the Intel Xeon Scalable processor with up to 28 cores, 12G SAS and 3.0 TB of 2933 MT/s HPE DDR4 SmartMemory.Supporting the second generation Intel® Xeon® Scalable processor family with up to a 11% per-core performance gain over first generation and with memory speeds up to 2933 MT/s. Intel® Optane™ persistent memory 100 series for HPE works with DRAM to provide fast, high capacity, cost effective memory and storage to transform big data workloads and analytics by enabling data to be stored, moved, and processed quickly.

Innovative Design for Flexibility and Choice

The premium 10 SFF NVMe chassis backplane provides the ability to mix and match SAS/SATA and NVMe within the same chassis along with 8 + 2 SFF and 4 LFF chassis that supports new uFF and M.2 storage options. Embedded 4 x 1GbE (select models) or HPE FlexibleLOM and PCIe standup 1GbE, 10GbE, 25GbE, or 100GbE adapters provides flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs. Unmatched expandability is packed in a dense 1U rack design with up to three PCIe 3.0 slots.

DL360 G10	Technical Specification
Processor	Intel® Xeon® Scalable
Memory slots	24 DIMM slots
Drive supported	4 LFF SAS/SATA, 8 SFF SAS/SATA + 2 NVMe, 10 SFF SAS/SATA, 10 SFF NVMe, 1 SFF or 1 Dual UFF rear drive optional depending on model
Expansion slots	3
Network controller	Embedded 4 X 1GbE Ethernet Adapter (select models) or HPE FlexibleLOM and optional PCIe stand-up cards, depending on model
Weight	13.04 kg minimum, 16.78 kg maximum
Storage controller	HPE Smart Array S100i and/or HPE Essential or Performance RAID controllers, depending on model
System fan features	Hot-plug redundant standard

System overview

The HPE ProLiant DL360 Gen10 Server supports the Intel® Xeon® Scalable Processor Family with up to 28 cores, plus 2933 MT/s HPE DDR4 Smart Memory supporting up to 3.0 TB max. With the added performance that HPE Persistent Memory and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy this dense platform for diverse workloads in space constrained environments and maintain it with ease by automating the most essential server lifecycle management tasks with HPE OneView and HPE iLO 5.

Chassis views

HPE ProLiant DL360 Gen10 1U Rack Server with Intel Xeon Scalable 1

1. Drive support label

2.Quick removal access panel

3.Serial no. label pull tab

4.Universal Media Bay: +2 SFF SAS/SATA shown

Option: +2 SFF NVMe drives

Option: DVD-RW or DVD-ROM + Display port & USB 2.0 port Kit

Option: +2 Dual uFF (4x M.2 cartridges)

Option: Display port + USB 2.0 port Kit + Blank

5. Power On/Standby button and system power LED

6. Health LED

7.NIC status LED

8.UID button/LED

9. USB 3.0 port

10. iLO Service Port

11. Standard 8 SAS/SATA drive bays

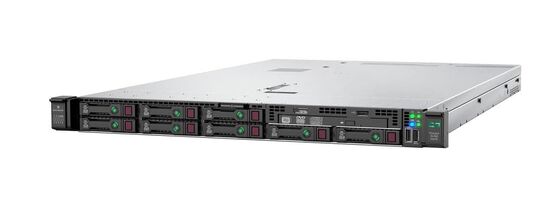

HPE ProLiant DL360 Gen10 1U Rack Server with Intel Xeon Scalable 2

1. Drive support label

2. Quick removal access panel

3. Serial no. label pull tab

4. Power On/Standby button and system power LED

5. Health LED

6. NIC status LED

7.UID button/LED

8.USB 3.0 port

9.iLO Service Port

10. Max up to 10 NVMe drives (PCIe direct attached) or 8 SAS/SATA/NVMe + 2 NVMe

HPE ProLiant DL360 Gen10 1U Rack Server with Intel Xeon Scalable 3

1. Drive support label

2. Quick removal access panel

3. Option: DVD-RW or DVD-ROM (blank shown)

4. Serial no. label pull tab

5. Option: Display port & USB 2.0 port Kit (blank shown)

6. Option: System insight Display (SID) - standard shown6

7. iLO Service Port

8. USB 3.0 Port

9.UID button/LED

10. Power On/Standby button and system power LED 11. Health LED 12. NIC status LED 13. SAS/SATA drive bay

HPE ProLiant DL360 Gen10 1U Rack Server with Intel Xeon Scalable 4

HPE ProLiant DL360 Gen10 1U Rack Server with Intel Xeon Scalable 5

HPE ProLiant DL360 Gen10 1U Rack Server with Intel Xeon Scalable 6

HPE ProLiant DL360 Gen10 1U Rack Server with Intel Xeon Scalable 7
