Efficiently Manage Centralized Virtual Desktop Environments with Dell Poweredge Server R730

MOQ: 1 piece
Price: Contact us
Standard Packaging: Original packaging box+Based on customer needs
Delivery Period: 2-7 working days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Supply Capacity: /pieces >=2 pieces
Details Information
Product Description
Detail Information
Place of Origin
Beijing, China
Brand Name
DELL
Model Number
R730
Type:
Rack
Processor:
Intel Xeon Processor E5-2600 V3 Product Family
HDD:
Up To 16 X 3.5” SAS, SATA, NL-SAS, SSD + 2 X 2.5” Drives
Memory:
Up To 768GB(24 DIMM Slots):
Storage Controller:
Support For 2 Internal RAID Controllers
Chassis Type 2U Rackmount:
2U Rackmount
Highlight:

Dell Poweredge R730 server

,

virtual desktop management server

,

Dell R730 centralized server

Product Description

PowerEdge R730



The Dell PowerEdge R730 is a general-purpose platform with highly expandable memory (up to
768GB) and impressive I/O capabilities to match. The R730 can readily handle very demanding
workloads, such as data warehouses, e-commerce, virtual desktop infrastructure (VDI), databases
and high-performance computing (HPC).



Efficiently Manage Centralized Virtual Desktop Environments with Dell Poweredge Server R730 0

Deliver peak performance

Drive peak compute performance across a variety of workloads with the Intel® Xeon® processor
E5-2600 v3 product family and state-of-the-art DDR4 memory. Boost data access for applications
with up to 16 x 12Gb/s SAS drives and high-performance dual RAID. Take advantage of advanced
accelerators and GPUs to maximize performance in HPC, VDI and imaging environments

Discover greater versatility

With 24 DIMMs of high-capacity, low-power DDR4 memory, 7 PCI Express® (PCIe) 3.0 expansion
slots and highly scalable local storage, the R730 is extremely flexible. Create a dense, resource-rich
virtualization environment with up to 16 x 2.5” drives. Combine that with the R730’s GPU capability
to save infrastructure costs and consolidate management operations in a scalable and centralized
virtual desktop environment. The GPU option also makes the R730 an excellent choice as a
midrange medical imaging solution

Maximize operational efficiency

PowerEdge servers let you construct and manage highly efficient infrastructures for data centers
and small businesses. Accelerate time-to-production with automated deployment processes that
use fewer manual steps and reduce the potential for error. Improve IT productivity with innovative
at-the-server management tools like iDRAC Direct and iDRAC Quick Sync to deliver in-depth
system health status and speed deployment. Optimize data center energy usage with improved
performance-per-watt and more granular control of power and cooling





R730xd Technical Specification
Processor
Intel Xeon processor E5-2600 v3 product family
Memory
24 x DDR4 RDIMM and LRDIMM Up to 768GB
Disk drives
Up to 16 x 2.5” HDD: SAS, SATA,
NL-SAS; SSD: 12Gb SAS, 6Gb SATA
Up to 8 x 3.5” HDD: SATA,
NL-SAS; SSD: 12Gb SAS, 6Gb SATA
Raid controller
PERC S130 (software RAID), H330,
H730, H730P, H830 (external);
support for 2 internal RAID controllers
PCI SLOTS
  Max 7 + 1 x PCIe 3.0/6 + 1 x PCIe 3.0
option to eliminate Riser 1
Form Factor 2U rack server
Embedded NICs
Select Network Adapter NDC
4 x 1GbE, 2 x 10GbE, 4 x 10GbE
PSU
Hot-plug, redundant power supply
units: 495W AC, 750W AC, 750W
AC/DC mixed mode2 , 1100W AC,
1100W DC

System overview

R730 have more drive bay options, more PCIe slots, next-generation RAID controllers and advanced system management

.

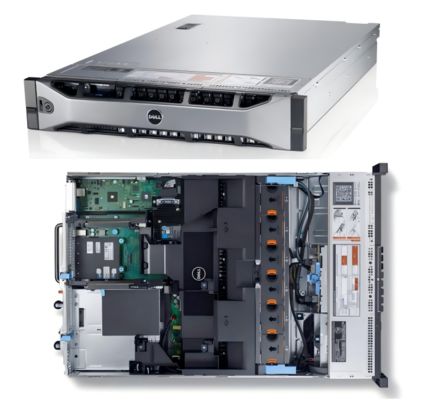

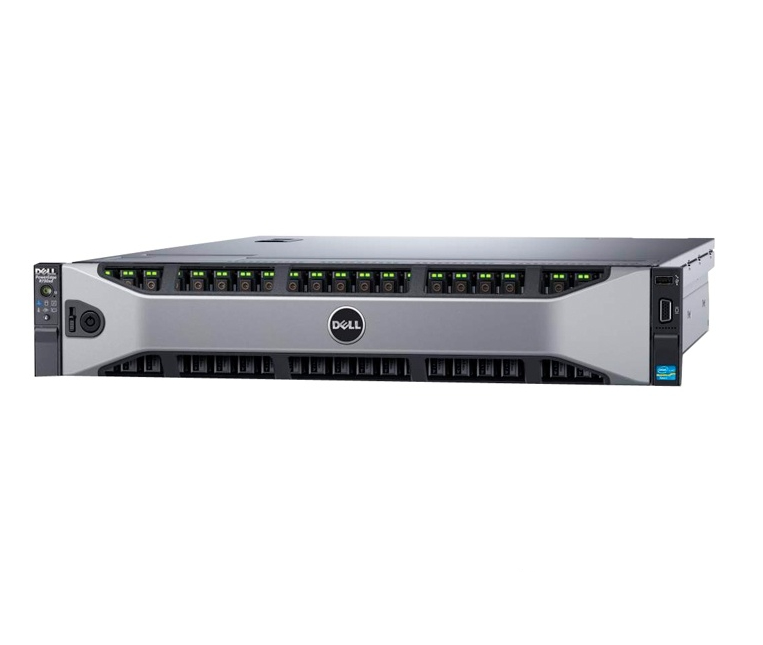

Chassis views

The R730xd are available in several chassis options with varying numbers of drive bays.

The R730 supports up to 16 x 2.5” or up to 8 x 3.5” front-accessible, hot-plug hard drives that are secured by a removable front bezel. Other front-panel features include an interactive LCD control panel, USB management port/iDRAC Direct, a video connector and a vFlash media card slot.



Efficiently Manage Centralized Virtual Desktop Environments with Dell Poweredge Server R730 1

Efficiently Manage Centralized Virtual Desktop Environments with Dell Poweredge Server R730 2



Efficiently Manage Centralized Virtual Desktop Environments with Dell Poweredge Server R730 3



R730xd back view

The R730 back panel includes PSUs, Ethernet connectors, PCIe slots and many other features described in this guide.
Efficiently Manage Centralized Virtual Desktop Environments with Dell Poweredge Server R730 4

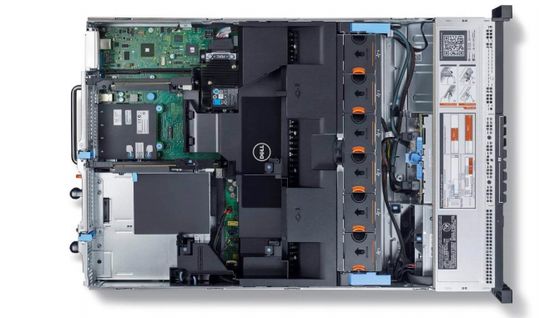

R730 internal chassis view
The chassis design of the R730 and R730xd is optimized for easy access to components and for airflow for effective and efficient cooling. The R730 and R730xd support up to 24 DIMMs,2 processors, hot-plug redundant fans, and many other components and features described in this guide.
Efficiently Manage Centralized Virtual Desktop Environments with Dell Poweredge Server R730 5
