Adaptable Dell Poweredge Server R7525 Tower Rack Server with AMD HBA345 for Business Needs

MOQ: 1 pieces
Price: Contact us(+8615701529165)
Standard Packaging: Based on customer needs
Delivery Period: 2-7 working days
Payment Method: L/C,D/A,D/P,T/T,Western Union
Supply Capacity: /pieces >=2 pieces
Details Information
Product Description
Detail Information
Place of Origin
Beijing, China
Brand Name
D E L L
Model Number
R7525
RAID:
HBA345, PERC H345, PERC H745, H840, 12Gbps SAS HBA Chipset SATA/SW RAID(S150): Yes PERC11 – H755, H755N
CPU:
AMD ,Two 2nd Or 3rd Generation AMD EPYCTM Processors With Up To 64 Cores Per Processor
RAM,memory:
DDR4: Up To 32 X DDR4 RDIMM (2TB), LRDIMM (4TB), Bandwidth Up To 3200 MT/S
Hard Disk Slot:
12*3.5，16/24*2.5，+2*2.5，SAS/SATA/NVME
Power Supply:
800W Platinum 1400W Platinum 2400W Platinum
Network:
Networking Options OCP X16 Mezz 3.0
Weight,Dimensions:
30kg-40KG,715.5*434*86.8mm
PCIE:
PCIe Up To 8 X PCIe Gen4 Slots
Highlight:

Dell Poweredge R7525 tower server

,

AMD HBA345 business server

,

rack mount Dell Poweredge server

Product Description
Adaptable AMD HBA345 Dell Poweredge R7525 Tower Rack Server 64 Cores
PowerEdge R7525 Unprecedented Performance
The Dell EMC PowerEdge R7525 Rack Server delivers powerful performance and flexible configurations for demanding workloads. This highly adaptable server features:
  • 100% more processing cores and faster PCIe Gen 4 data transfer speeds
  • 20% improved memory performance for scale-out environments
  • Maximized storage and memory configurations for HPC, ML/DL/AI, and rendering
  • 24 direct connect Gen4 NVMe drives for all-flash vSAN Ready Node support
  • Optimized core count and GPU support for maximum user capacity
Technical Specifications
TechnologyDetailed Description
AMD® EPYC™ Generation 2 and Generation 3 processors
  • 7 nm processor technology
  • AMD Interchip global memory interconnect (xGMI) up to 64 lanes
  • Up to 64 cores per socket
  • Up to 3.8 GHz
  • Max TDP: 280 W
3200 MT/s DDR4 memory
  • Up to 32 DIMMs
  • 8x DDR4 Channels per socket, 2 DIMMs per channel (2DPC)
  • Up to 3200 MT/s (configuration-dependent)
  • Supports RDIMM, LRDIMM, and 3DS DIMM
PCIe Gen and slotGen 4 at 16 T/s
Flex I/O
  • LOM board, 2 x 1G with BCM5720 lan controller
  • Rear I/O with 1 G dedicated management network port
  • One USB 3.0, one USB 2.0 and VGA port
  • OCP Mezz 3.0
  • Serial port option
CPLD 1-wireSupport payload data of front PERC, Riser, backplane and rear I/O to BIOS and IDRAC
Dedicated PERCFront storage module PERC with front PERC 10.4
Software RAIDOperating system RAID/PERC S 150
iDRAC9 with Lifecycle ControllerEmbedded systems management solution featuring hardware/firmware inventory, alerting, dedicated Gb port, and enhanced performance
Wireless ManagementQuick Sync 2.0 offers wireless at-the-box system management with improved user experience
Power supply
  • 60 mm / 86 mm dimension PSU form factor
  • Platinum Mixed Mode options: 800 W AC or HVDC, 1400 W AC or HVDC, 2400 W AC or HVDC
Boot Optimized Storage Subsystem S2 (BOSS S2)
  • Supports up to 80 mm M.2 SATA SSDs
  • Single Gen2 PCIe x 2 host interface
  • Dual SATA Gen3 device interfaces
Liquid cooling solution
  • Efficient temperature management system
  • Liquid leak detection via iDRAC (Liquid Leak Sensor mechanism)
  • Detects leaks from 0.02 ml to 0.2 ml
Adaptable Dell Poweredge Server R7525 Tower Rack Server with AMD HBA345 for Business Needs 0
Product Comparison
FeaturePowerEdge R7525PowerEdge R7425
ProcessorTwo AMD® EPYC™ Generation 2 or Generation 3 processorsTwo AMD Naples™ socket SP3 compatible processors
CPU InterconnectInter-chip global memory interconnect (xGMI-2)AMD Socket to Socket Global Memory Interface (xGMI)
Memory32x DDR4 RDIMM, LRDIMM, 3DS32x DDR4 RDIMM, LRDIMM
Disk Drives3.5-inch, 2.5-inch: 12G SAS, 6G SATA, NVMe HDD3.5-inch, 2.5-inch: 12G SAS, 6G SATA HDD
Storage ControllersH755, H755N, H745, HBA345, HBA355, H345, H840, 12G SAS HBA, SW RAID: S150Adapters: H330, H730P, H740P, H840, HBA330, 12G SAS HBA, SW RAID: S140
PCIe SSDUp to 24x PCIe SSDUp to 24x PCIe SSD
PCIe SlotsUp to 8 (PCIe 4.0)Up to 8(Gen3 x16)
rNDC2 x 1 GBSelect Network Adapter NDC: 4 x 1 GB, 4 x 10 GB, 2 x 10 GB + 2 x 1 GB, or 2 x 25 GB
OCPYes for OCP 3.0NA
USB PortsFront: 1 x USB 2.0, 1 x iDRAC USB (Micro-AB USB)
Rear: 1 x USB 3.0, 1 x USB 2.0
Internal: 1 x USB 3.0		Front: 1 x USB2.0, 1 x iDRAC USB(Micro USB), Optional 1xUSB 3.0 front port
Rear: 2 x USB3.0
Internal: 1 xUSB3.0
Rack Height2U2U
Power SuppliesMixed Mode (MM) AC/HVDC (Platinum) 800 W, 1400 W, 2400 WAC Platinum: 2400 W, 2000 W, 1600 W, 1100 W, 495 W
750 W AC Platinum: Mixed Mode HVDC (for China only), Mixed Mode AC, DC (DC for China only)
1100 W -48 V DC Gold
System ManagementLC 3.x, OpenManage, QuickSync2.0, OMPC3, Digital License Key, iDRAC Direct (dedicated micro-USB port), Easy RestoreLC 3.x, OpenManage, QuickSync 2.0, Digital License Key, iDRAC9, iDRAC Direct (dedicated micro-USB port), Easy Restore, vFlash
GPU3 x 300 W (DW) or 6 x 75 W (SW)3 x 300 W (DW) or 6 x 150 W (SW)
AvailabilityHot-plug drives, Hot-plug redundant power supplies, BOSS, IDSDMHot-plug drives, Hot-plug redundant power supplies, BOSS, IDSDM
System Views
Adaptable Dell Poweredge Server R7525 Tower Rack Server with AMD HBA345 for Business Needs 1

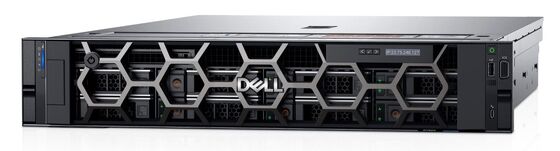

Figure 1. Front view of the 24 x 2.5-inch drive system
Adaptable Dell Poweredge Server R7525 Tower Rack Server with AMD HBA345 for Business Needs 2
Figure 2. Front view of the 16 x 2.5-inch drive system
Adaptable Dell Poweredge Server R7525 Tower Rack Server with AMD HBA345 for Business Needs 3
Figure 3. Front view of the 8 x 2.5-inch drive system
Adaptable Dell Poweredge Server R7525 Tower Rack Server with AMD HBA345 for Business Needs 4
Figure 4. Front view of the 12 x 3.5-inch drive system
Adaptable Dell Poweredge Server R7525 Tower Rack Server with AMD HBA345 for Business Needs 5
Figure 5. Front view of the 8 x 3.5-inch drive system
Adaptable Dell Poweredge Server R7525 Tower Rack Server with AMD HBA345 for Business Needs 6

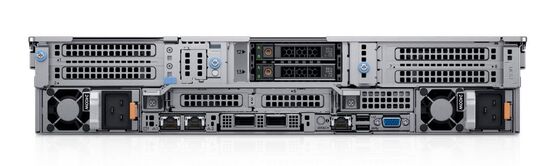

Rear view of the system
Adaptable Dell Poweredge Server R7525 Tower Rack Server with AMD HBA345 for Business Needs 7
Figure 6. Rear view of the system with 2 x 2.5-inch rear drive module
Adaptable Dell Poweredge Server R7525 Tower Rack Server with AMD HBA345 for Business Needs 8

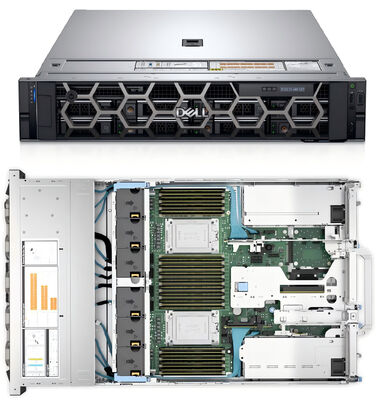

Figure 7. Inside the system
Adaptable Dell Poweredge Server R7525 Tower Rack Server with AMD HBA345 for Business Needs 9
Figure 8. Inside the system with full length risers
