432Gbps Home Ethernet Switch VLAN S5735-L48T4S-A1

432Gbps Home Ethernet Switch VLAN S5735-L48T4S-A1
432Gbps Home Ethernet Switch VLAN S5735-L48T4S-A1 432Gbps Home Ethernet Switch VLAN S5735-L48T4S-A1 432Gbps Home Ethernet Switch VLAN S5735-L48T4S-A1

Large Image :  432Gbps Home Ethernet Switch VLAN S5735-L48T4S-A1

Product Details:
Place of Origin: Beijing, China
Brand Name: HUAWEI
Model Number: S5735-L48T4S-A1
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: Contact us
Packaging Details: Original packaging box+Based on customer needs
Delivery Time: 2-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: /pieces >=1 pieces
Contact Now

432Gbps Home Ethernet Switch VLAN S5735-L48T4S-A1

Description
Ports: 48 10/100/1000BASE-T Ethernet Ports, 4 Gigabit SFPs Transmission Rate: 87/166Mpps
Function: VLAN Support Communication Mode: Full-Duplex & Half-Duplex
Switch Capacity: 432Gbps Product Name: Network Switch
Color: Black Chassis Height: 1U
Chassis Size: 442x220x43.6mm Weight: 3.74 Kg
Maximum Power Consumption: 50.4 W
Highlight:

432Gbps VLAN network switch

,

S5735-L48T4S-A1 Ethernet switch

,

48-port home network switch

Huawei S5735-L48T4S-A1 Switch Overview



Huawei S5735-L48T4S-A1 switch with 48 10/100/1000BASE-T ports, 4 GE SFP ports, AC power fixed, which is one model of Huawei S5735-L series switch.

CloudEngine S5735-L series switches are ideal for scenarios such as enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-L switches stand out with compelling features such as intelligent stack (iStack), flexible Ethernet networking, and diversified security control. They support multiple Layer 3 routing protocols and provide high-performance and service processing capabilities.





Huawei S5735-L48T4S-A1 Switch Quick Specs



48 x 10/100/1000Base-T ports
4 x GE SFP ports
AC power supply
Forwarding performance: 78 Mpps
Switching capacity: 104 Gbps/432 Gbps

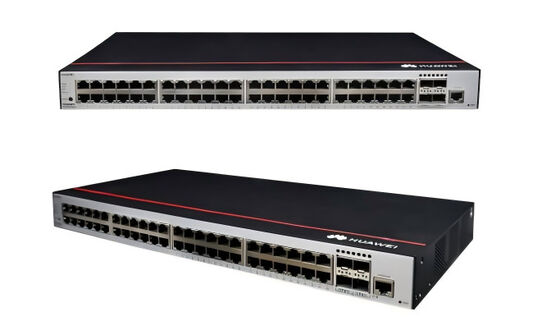

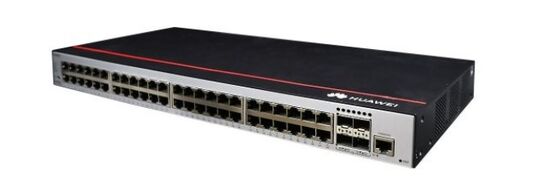

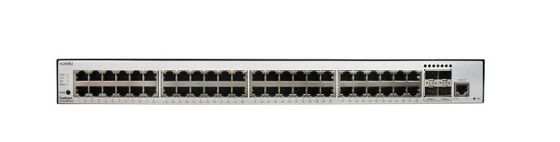

Huawei S5735-L48T4S-A1 Switch Appearance and Structure

432Gbps Home Ethernet Switch VLAN S5735-L48T4S-A1 0

Item Specification
Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U] 1 U
Chassis material Metal
Weight without packaging [kg(lb)] 2.76 kg (6.09 lb)
Weight with packaging [kg(lb)] 3.74 kg (8.25 lb)
Typical power consumption [W] 43.3 W
Typical heat dissipation [BTU/hour] 147.74 BTU/hour
Maximum power consumption [W] 50.4 W
Maximum heat dissipation [BTU/hour] 171.97 BTU/hour
Static power consumption [W] 20.3 W
MTBF [years] 56.7 years
MTTR [hours] 2 hours
Availability > 0.99999
Noise at normal temperature (acoustic power) [dB(A)] 48 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 36.2 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 1
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)] -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)





Table 2 shows the recommended models.

Model Description
OMXD30000 Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)
SFP-GE-LX-SM1310 Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
OMXD30009 Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10

ESFP-GE-SX-MM850



 Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC)

Compare to Similar Items

Table 3 shows the comparison.

Product Model

S5735S-L12T4S-A

S5735S-L12P4S-A

S5735S-L24T4S-A

S5735S-L24P4S-A

S5735S-L24T4X-A

S5735S-L24P4X-A

 S5735S-L48T4S-A

S5735S-L48T4X-A

S5735S-L48P4X-A

 S5735S-L32ST4X-A
Forwarding Performance 24 Mpps 42 Mpps 96 Mpps 78 Mpps 132 Mpps 108 Mpps
Switching Capacity2 32 Gbit/s/336 Gbit/s 56 Gbit/s/336 Gbit/s 128 Gbit/s/336 Gbit/s 104 Gbit/s/432 Gbit/s 176 Gbit/s/432 Gbit/s 144 Gbit/s/432 Gbit/s
Fixed Ports 12 x 10/100/1000Base-T ports, 4 x GE SFP ports 24 x 10/100/1000Base-T ports, 4 x GE SFP ports 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports 48 x 10/100/1000BASE-T ports, 4 x GE SFP ports 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+ CloudEngine S5735S-L12P4S-A: Supported
CloudEngine S5735S-L24P4S-A: Supported
CloudEngine S5735S-L24P4X-A: Supported
CloudEngine S5735S-L48P4X-A: Supported
Other: Not supported
